製品詳細
起源の場所: チャン州
ブランド名: Shengman
証明: CE
モデル番号: LG
支払いと送料の条件
最小注文数量: 1セット
価格: USD30,000-300,000
パッケージの詳細: エクスポートパッケージ
受渡し時間: 30-90日
支払条件: T/T
供給の能力: 1～10セット/月
容量: |
顧客が要求する |
任意装置: |
マイクロフィーダー装置 |
サプライヤー: |
中国の工場 |
制御システム: |
PLC |
部品: |
有名なブランド |
給餌タイプ: |
横送りタイプ |
特徴: |
水や溶剤は使用しません |
保証: |
1年 |
材料: |
SS304、316L |
コアセールスポイント: |
有名ブランドPLC |
該当する業界: |
製薬、化学、食品産業 |
利点: |
厳格なプロセス要件 |
容量: |
顧客が要求する |
任意装置: |
マイクロフィーダー装置 |
サプライヤー: |
中国の工場 |
制御システム: |
PLC |
部品: |
有名なブランド |
給餌タイプ: |
横送りタイプ |
特徴: |
水や溶剤は使用しません |
保証: |
1年 |
材料: |
SS304、316L |
コアセールスポイント: |
有名ブランドPLC |
該当する業界: |
製薬、化学、食品産業 |
利点: |
厳格なプロセス要件 |

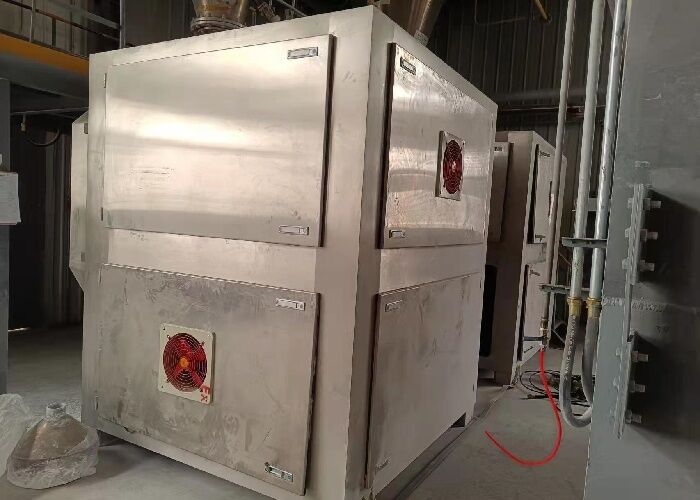

Lyophilized Royal Jelly Powder Roller Compactor Granulator for food industry
Description of Roller Compactor:
During granulation, the dispensed and mixed dry powder materials are fed into the upper hopper through the special feeder (pneumatic or mechanical) and conveyed to the pressure chamber through the spiral conveyor. The two high pressure extrusion wheels will press the materials into slices of high pressure density, which will be cut into small pieces by the cutting system and made into granules of desired sizes by the two-stage granule sizing system, so that the granulating process is completed.
The LG roller compactor is mainly composed of the following parts: material conveying system, direction changing material conveying system, extrusion system,crushing system, front cover system, water cooling system, granule sizing system, hydraulic system, machine body combination, cover plate combination and vibrating sifter (not provided for partition installation).
| Model | LG100 | LG100E | LG160 | LG200 | LG240 | LG360 |
|
Capacity (kg/h) |
1.5-15 | 12-40 | 50-150 | 100-240 | 160-320 | 360-720 |
|
Rated power (kw) |
3.47 | 3.53 | 7.24 | 11.37 | 15.94 | 32.55 |
| Roller size (D*W) | 100*25 | 100*40 | 160*50 | 200*75 | 240*100 | 360*150 |
For large production scale application, we provide double-supporting roller model
| Model | LGS200 | LGS240 | LGS360 | LGS500 |
|
Capacity (kg/h) |
200-400 | 300-640 | 1200-2000 | 1500-3000 |
|
Rated power (kw) |
||||
| Roller size (D*W) |
Features of roller compactor:
1. Three functions in one unit, These are compression, crushing and milling.
2. Simplified process to obtain highly stable granules. No water or other liquid is added and no need drying, so the loss of active ingredients due to decomposition can be eliminated.
3. Pressure rollers with a water cooling system;
4. Overall modular design, compact structure, better space utilization;
5. The power area is separated from the work area to prevent cross contamination;
6. Horizontal feeding structure, exposed installation of extrusion system, easy to clean and maintain;
7. Meet GMP requirements and CE qualified.
Application of Roller compactor:
Dry Granulator is widely used in pharmaceutical industry, nutriceutical industry, food industry and chemical industry.
Pharmaceutical industry: Chinese medicine, western drugs, amoxicillin, cefalexin, etc.
Nutriceutical industry: Probiotics, lyophilized royal jelly powder, etc.
Food industry: Fruit powder, collagen powder, tea powder, etc.
Chemical industry: Magnesium oxide, antioxidants, pyrazole, etc.
